High Frequency Steel Straight Seam Pipe Welding Line Tube Mill

Name: High Frequency Steel Straight Seam Pipe Welding Line Tube Mill
Brand: ZTZG
Price: 1 USD

Quality High Frequency Steel Straight Seam Pipe Welding Line Tube Mill for sale

Brand Name : ZTZG

Model Number : ERW219

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 90 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Product Name : High Frequency Steel Straight Seam Pipe Welding Line Tube Mill

Voltage : 220/380/415/420/440V

Length : 6m-12m

Thickness : 2.0mm-8.0mm

Pipe shape : Rectangular

Mill installed capacity : 280 kw

Pipe Material : Carbon Steel Coil

Production Speed : 20-50 m/min

Technology : ZTF,square-square (DSS) technique

Products : coal transmission belt tubes, drive shaft tubes, guardrail tubes

Line Area : 100m(length) ×9m (width)

Service : Free technical consultation online

Contact Now

High Frequency Steel Straight Seam Pipe Welding Line Tube Mill

ERW219 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 89mm-219mm in OD and 2.0mm-8.0mm in wall thickness, as well as corresponding square and rectangular pipe.

High Frequency Steel Straight Seam Pipe Welding Line Tube Mill

Advantage:

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

Products:

architectural structure tubes, low-pressure liquid tubes, coal transmission belt tubes, drive shaft tubes, guardrail tubes, tower footing tubes, automobile beam steel tube and other products.

High Frequency Steel Straight Seam Pipe Welding Line Tube Mill

Basic Technical Information of Welded Pipe Production Line
Product&yield	Round Pipe	89mm-219mm Thickness:2.0mm-8.0mm
	Square & rectangle tube	70mm×70mm -170mm×170mm Thickness:2.0mm-6.0mm
	Length	6m-12m Length Tolerance: ±3mm
	Production Speed	20-50 m/min
	Production capacity	35,000ton/year
Consumption	Mill installed capacity	280 kw
	Line Area	100m(length) ×9m (width)
	worker	6-8 workers
Raw Material	Carbon Steel coil	Carbon steel coil Q235B(ASTM GR·D,σs 230)
	Width	280mm-690mm Thickness: 2.0mm-8.0mm
	Coil ID	600-800mm
	Coil OD	Max 2000mm
	Coil Weight	8.0t

Technical flow

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

We can also design square tube machine depends on customer’s requirement.

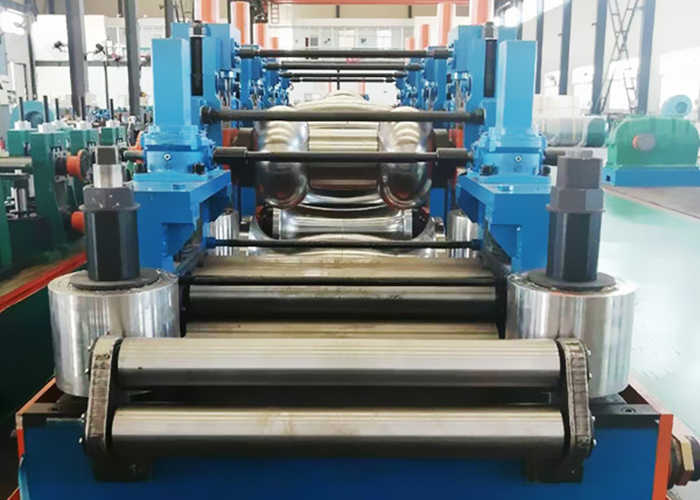

High Frequency Steel Straight Seam Pipe Welding Line Tube Mill Images
